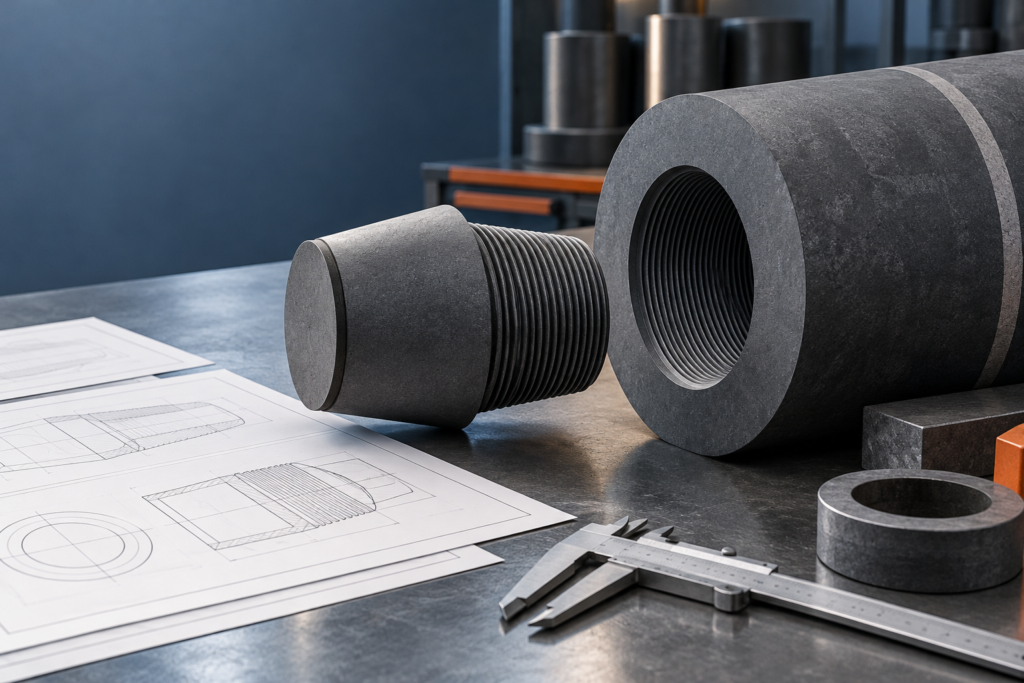

What makes a replacement joint compatible?
A replacement is compatible only when the electrode socket and nipple are defined by the same current drawing and acceptance basis. Confirm the thread form, pitch, taper, key diameters and lengths, end-face relationship, nipple material/grade, assembly condition and whether the nipple is included. A matching nominal electrode diameter is not enough.
Replacement compatibility checklist
| Check | Confirm | Why it matters |
|---|---|---|
| Identity | Electrode size, supplier part reference and drawing revision | Avoids mixing revisions. |
| Thread geometry | Thread form, pitch/TPI, hand and taper | Prevents superficially similar joints from being treated as equal. |
| Fit dimensions | Socket and nipple reference diameters, lengths and engagement definition | Controls the actual mating relationship. |
| Contact condition | End faces, shoulder/contact design and visible damage | Fit depends on more than the thread profile. |
| Supply scope | Nipple included, pre-set or separate; protection and packing | Prevents a complete set from being assumed. |

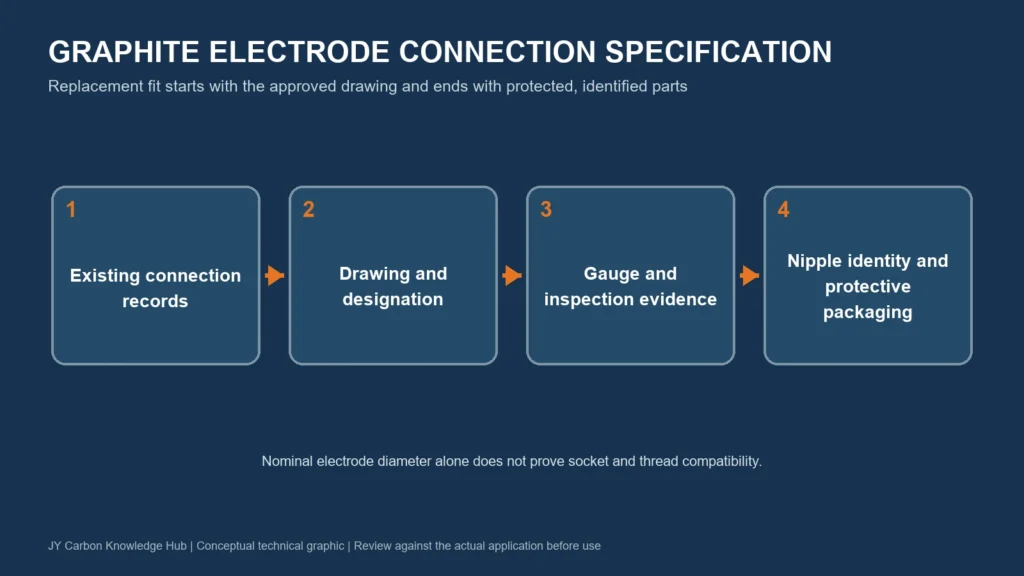

From joint identity to a compatible replacement
Use one controlled drawing revision
Place the buyer’s drawing, the supplier’s confirmation drawing and any approved sample record side by side. If the references disagree, stop the compatibility decision and resolve which document controls. A photo is useful for condition evidence, but it cannot replace dimensions or a controlled drawing.
Separate identification from inspection
Part identification tells the team what should have been supplied. Dimensional and visual inspection shows what was actually received. Keep those two evidence groups linked by batch or item identity so that a correct label cannot hide a machining mismatch.
Agree the supply and assembly boundary
State whether nipples are supplied with electrodes, pre-set, packed separately or reused from an existing source. Installation requirements should come from the equipment or approved supplier procedure; this article does not create a universal tightening value.
Extended field guide: turning the article into a controlled decision
A selection decision becomes reliable only when the requirement, the offered product and the acceptance evidence use the same definitions. The purpose of the extended review below is to turn a general inquiry into a controlled technical decision without pretending that incomplete data already proves fit.
The final output should be a technically bounded offer: confirmed items, explicit assumptions, unresolved hold points and the evidence required to close each hold.
Use a working file, not an email summary. Create one review file for the topic and give it an owner, date and revision. Include the requirement, the offered or observed condition, the source for each statement, the decision status and the next action. Emails, chat messages and photographs can be linked as evidence, but the controlled file should show the latest conclusion. This prevents an early assumption from surviving after later information changes the decision.
Do not mark the review complete merely because every row contains text. Completeness means that the text is traceable and adequate for its intended decision. Where confidentiality limits access to a drawing or production record, record who reviewed it and what bounded conclusion was approved without copying unsupported details into the article or order.
How to document each critical input
| Critical input | Controlled record | Review and hold-point rule |
|---|---|---|
| Identity | Electrode size, supplier part reference and drawing revision. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Avoids mixing revisions. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Thread geometry | Thread form, pitch/TPI, hand and taper. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Prevents superficially similar joints from being treated as equal. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Fit dimensions | Socket and nipple reference diameters, lengths and engagement definition. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Controls the actual mating relationship. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Contact condition | End faces, shoulder/contact design and visible damage. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Fit depends on more than the thread profile. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Supply scope | Nipple included, pre-set or separate; protection and packing. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Prevents a complete set from being assumed. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
Use the input table as a live technical-control sheet rather than a one-time questionnaire. On the first pass, record only what the buyer and plant can verify. On the second pass, add the supplier’s proposed definition without overwriting the original requirement. On the third pass, record the agreed position and link it to the drawing, specification, measurement or named technical approval that closed the difference. This sequence preserves how the decision changed and prevents the latest wording from erasing an earlier conflict.
The “requirement,” “proposal” and “observed result” labels are especially important. A requirement states what the order needs; a proposal states what the supplier is offering; an observed result states what was measured or seen for an identified item or period. If the three are placed in one cell without labels, a reviewer may mistake a proposed value for an accepted limit or a single observation for a permanent specification. Keep the roles separate until the responsible technical reviewer explicitly reconciles them.
Give every row a simple status such as confirmed, proposed, pending clarification or not applicable, and require a reason whenever “not applicable” is selected. A status without supporting evidence is only a workflow marker; it is not technical proof. Record the evidence reference in the same row so that a later reviewer can move directly from the conclusion to the drawing, report, calculation, photograph or approval that supports it. Where two sources conflict, retain both references and show which source controls the current decision.
Review the table at defined handoffs rather than waiting for the end. Typical checkpoints include inquiry release, supplier clarification, technical comparison, order confirmation, pre-production approval and final acceptance. The exact checkpoints depend on the article topic and order stage, but each review should confirm that new information has been incorporated, old assumptions have been superseded visibly and open items still have an owner and closing condition.
A practical end-to-end review workflow
| Review action | How to execute it | Required output before moving on |
|---|---|---|
| Define the decision, not just the product name | State whether the task is first selection, like-for-like replacement, supplier comparison or correction of an existing problem. That decision changes which information is mandatory and which evidence can be reused. | A named decision type, scope and list of mandatory inputs. |
| Collect the current controlled basis | Gather the latest drawing, accepted specification, equipment information and any current-product identity. Mark every source with its revision or date so that an old attachment cannot silently control a new order. | A revision-controlled evidence index covering drawings, specifications, equipment information and current-product identity. |
| Convert descriptions into confirmable fields | Translate phrases such as “same as before,” “high power” or “standard connection” into dimensions, property ranges, drawing references and supply-scope statements that both sides can confirm. | Confirmable dimensions, property ranges, drawing references and supply-scope statements in place of ambiguous descriptions. |
| Compare the proposal against the requirement | Review each offered item against the buyer-controlled table. Record matches, differences and unknowns separately; do not collapse them into a single “technically acceptable” note too early. | A buyer-controlled comparison record separating matches, differences and unknowns. |
| Resolve hold points before commercial commitment | For each unknown that can alter fit, safety, acceptance or price, identify the owner and closing evidence. A preliminary quotation may continue, but the technical hold must remain visible. | A technical-hold list with owners, closing evidence and the commercial assumptions allowed while each hold remains open. |
| Release one aligned definition | The order, technical attachment, drawing and document list should point to the same product definition. Superseded emails and drawings should not remain as competing instructions. | One aligned product definition referenced consistently by the order, technical attachment, drawing and document list. |
The six steps are sequential, but they do not require every related activity to stop while a technical point is open. Preliminary comparison, information collection and commercial discussion may continue when the assumption and hold point remain explicit. What should not happen is silent progression: production release, final approval, publication or acceptance commitments must not rely on an unresolved field.
When a step sends the review backward, record why. New evidence may show that a revision, sample basis, calculation boundary or proposed definition is incomplete. Returning to an earlier step is not process failure; it is controlled correction. Update the evidence index, preserve the superseded revision and restate the downstream impact so that commercial, engineering, quality and operating teams continue to work from the same definition.
The output column is the gate between steps. Before a team marks a step complete, it should be possible for another qualified person to locate the stated output, identify its revision and understand who accepted it. If the output exists only in a call or an unindexed message, copy the bounded conclusion into the controlled file and link the original communication where appropriate. This avoids repeating the same clarification when personnel or suppliers change.
Close the workflow with a short release note that lists the subject, accepted definition or calculation basis, decisive evidence, remaining limitations and next owner. The note should not repeat the entire article; its purpose is to show exactly what was decided and what was not. If evidence remains insufficient, an honest pending or conditional result is stronger than a confident statement that cannot be traced.
Evidence quality: what deserves more weight?
Controlled order evidence. An approved drawing, agreed technical specification, purchase-order attachment or named test method is strong for the exact item and revision it controls. It should still be checked for scope: a drawing may define geometry without proving material properties, while a laboratory result may describe a specimen without proving connection fit. Strong evidence is specific, not universal.
Batch, item and event records. COAs, inspection sheets, process travellers, receiving photos, operating logs and maintenance records can support what happened to an identified batch, item or period. Their usefulness depends on identity, timing and method. A batch result should not be stretched into a permanent capability claim, and one operating event should not become an industry frequency statement.
General product and technical information. Product pages, catalogues and explanatory articles are useful for defining questions and preliminary ranges. They do not automatically become the acceptance basis for a purchase. Where a public table and an order document differ, the approved order document should control the transaction, and the difference should be resolved rather than hidden.
Photographs and recollections. Images are valuable for condition, identity and sequence when they include context. They rarely prove a tolerance, material property or root cause by themselves. Recollections can direct an investigation but should be distinguished from time-stamped records. Label estimates and later reconstructions clearly.
Roles and handoffs
The buyer or commercial team should own the inquiry scope, quantity, destination and agreed commercial boundary. Plant or application engineering should confirm equipment duty, operating context and technical constraints. Quality personnel should define the evidence, method, inspection and exception process. The supplier should state the proposed product, manufacturing or processing boundary, document availability and unresolved assumptions. Receiving or operations personnel should preserve item identity and report observed conditions without changing the technical definition.
A useful handoff contains four things: the latest controlled input, the decision made, the evidence supporting it and the open action with an owner. “Engineering has checked it” is not enough unless the checked revision and bounded conclusion are visible. Equally, a long attachment list is not a handoff if no one has reconciled conflicting identities or revisions.
Illustrative review scenario
Assume a buyer receives an offer that appears to answer the headline question in Graphite Electrode and Nipple Compatibility: A Replacement Checklist, but two fields are incomplete. The team first copies the supplier’s wording without editing it, then compares Identity, Thread geometry, Fit dimensions, Contact condition, Supply scope with the buyer’s requirement. Confirmed matches are recorded as such; differences are described neutrally; unknowns remain blank or marked pending.
The team does not fill missing technical values from another supplier’s catalogue. Instead, it sends a focused clarification that names the exact drawing, record, measurement or plant input required. Commercial comparison may continue using explicit assumptions, but technical approval remains on hold wherever the missing field can change fit, interpretation, acceptance or responsibility. When the reply arrives, the reviewer updates the controlled file, records the revision and explains whether the new evidence closes the question.
This scenario is intentionally generic. It demonstrates a review discipline, not a product recommendation, performance prediction or customer case. Actual values and acceptance decisions must come from the relevant furnace, order and approved technical documents.
Common failure modes and corrections
- Treating identity as already understood. The correction is to restate “Electrode size, supplier part reference and drawing revision” in the order or investigation record and verify why it matters: avoids mixing revisions.
- Treating thread geometry as already understood. The correction is to restate “Thread form, pitch/TPI, hand and taper” in the order or investigation record and verify why it matters: prevents superficially similar joints from being treated as equal.
- Treating fit dimensions as already understood. The correction is to restate “Socket and nipple reference diameters, lengths and engagement definition” in the order or investigation record and verify why it matters: controls the actual mating relationship.
- Treating contact condition as already understood. The correction is to restate “End faces, shoulder/contact design and visible damage” in the order or investigation record and verify why it matters: fit depends on more than the thread profile.
- Treating supply scope as already understood. The correction is to restate “Nipple included, pre-set or separate; protection and packing” in the order or investigation record and verify why it matters: prevents a complete set from being assumed.
Two broader mistakes deserve attention. First, do not turn the absence of evidence into a positive statement. “No defect reported” is different from “inspection confirmed no defect.” Second, do not let a technically attractive explanation outrun the record. If several explanations remain consistent with the evidence, state that uncertainty and define the next discriminating check.
Final decision record
Before publication, quotation, purchase approval or technical disposition, write a short decision note that another qualified reviewer can follow without relying on the original conversation. It should identify the controlled item or question, list the decisive evidence, state important limits, record unresolved matters and name the next owner. The final output should be a technically bounded offer: confirmed items, explicit assumptions, unresolved hold points and the evidence required to close each hold.
A robust decision note is brief compared with the evidence behind it, but it is not vague. It avoids claims such as “industry standard,” “fully compatible,” “all documents available” or “material caused the event” unless the relevant controlled evidence supports that exact scope.
Questions buyers often need to resolve
Can a nipple be reused when the electrode body is replaced?
Only after its identity, condition and compatibility with the current socket drawing are confirmed. Reuse should not be assumed from visual similarity.
Is a thread gauge result enough?
No. It can support one part of the inspection, but taper, reference dimensions, engagement, end-face condition and the approved drawing still matter.
Related reading
Author and Review
Written by Sterling Yang, Senior Vice President at Jiyang Carbon.
This article was reviewed by Mr. Yang, Technical Director at Jiyang Carbon.
No universal thread tolerance or tightening value is given, because compatibility must be confirmed against the current approved socket-and-nipple drawing, component condition and assembly procedure.
