How to Review a Graphite Electrode Quality Package: Material Properties, Dimensions, and Nipple Inspection
A buyer-side framework for reviewing test results, dimensional evidence and connection inspection as one graphite electrode quality package.
Direct Answer
A graphite electrode quality package should combine batch test results, specimen and method references, dimensional inspection, end-face and socket checks, nipple or pin identification, packaging records and conformity to the purchase drawing. Material properties cannot confirm connection fit, and dimensional inspection cannot replace material testing. Approval depends on the complete package and the intended furnace duty.
Key Takeaways
- Review material properties and dimensions as separate but connected evidence groups.
- Electrical resistivity, density and strength results require named methods and specimen context.
- Electrode diameter alone does not confirm socket, thread or nipple compatibility.
- End-face condition, machining evidence and protective packaging affect receiving inspection.
- A supplier certificate should be reconciled with the purchase order and drawing.
Table of Contents
- Start with the purchase definition
- Review material-property evidence
- Review dimensions and connection fit
- Inspect nipple and end-face evidence
- Build the acceptance package
Start With the Purchase Definition
Quality review begins with the approved order, not with the certificate. Confirm the electrode designation, furnace application, grade where approved, nominal dimensions, connection drawing, nipple supply arrangement, packaging and inspection documents. If the order references a customer drawing or standard, the revision should be visible.
IEC publishes a standard covering the dimensions and designation of cylindrical graphite arc-furnace electrodes and pins, with interchangeability as an explicit purpose (IEC graphite electrode dimensions and designation). A buyer should still confirm which drawing and connection are contractually applicable rather than assume that every supplier uses the same configuration.

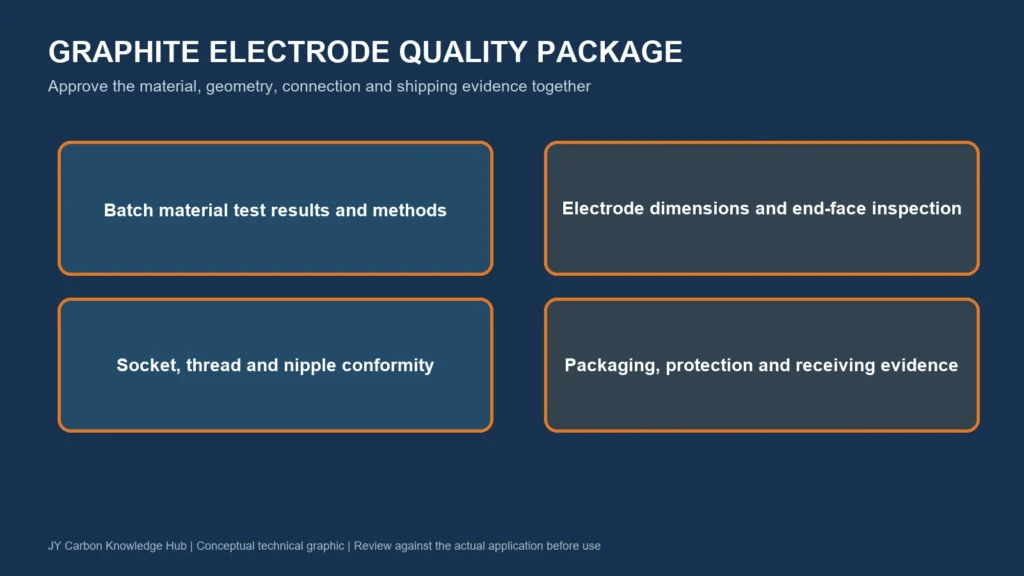

Quality-package framework. Contract drawings and agreed methods determine the applicable acceptance criteria.
Review Material-Property Evidence
Common quality packages may include electrical resistivity, bulk density, ash, flexural or compressive strength and other agreed indicators. ASTM’s manufactured carbon and graphite committee maintains separate methods for several of these properties (ASTM manufactured carbon and graphite methods). The existence of a method does not make every parameter mandatory for every order; the purchase specification must define what applies.
Check whether the result belongs to the electrode body, nipple material or another specimen. Review sampling location, specimen orientation where relevant, test method and batch identity. Do not compare values produced by different methods as if they were automatically equivalent.
| Evidence group | Review question | Common omission to avoid |
| Material properties | Which batch, specimen and test method produced the result? | A value without method or product-part identity |
| Electrode dimensions | Do diameter, length, straightness and end details match the order? | Checking nominal size but not tolerance evidence |
| Socket and thread | Does the connection match the approved drawing and gauge plan? | Assuming diameter confirms thread compatibility |
| Nipple or pin | Is identity, condition and pairing controlled? | Loose or mixed connection parts without batch reference |
| Packaging | Are threads, end faces and electrode bodies protected for transport? | Accepting damaged protection without inspection |
Review Dimensions and Connection Fit
Dimensional evidence should address the features that affect installation and column alignment. Diameter and length are only the beginning. Straightness, end-face condition, socket geometry, thread form, pitch, taper where applicable and gauge results may all be relevant to the approved drawing.
A certificate that says “dimensions passed” gives limited diagnostic value. A better package identifies the drawing or standard, inspection equipment or gauge plan, sampling scope and acceptance status. If interchangeability with existing stock matters, the buyer should provide the exact existing connection information rather than relying on a similar product name.
Inspect Nipple and End-Face Evidence
The nipple and sockets form a mechanical and electrical connection. Receiving inspection should look for impact damage, thread contamination, chipped crests, abnormal end-face marks, mixed identification and compromised protection. The inspection should remain non-destructive unless an approved procedure states otherwise.
Do not use visual appearance alone to approve fit. Visual inspection finds obvious transport or handling damage; dimensional gauges and drawing comparison address geometry. Connection practices and tightening procedures remain the responsibility of the site’s approved instructions.
Build the Acceptance Package
- Approved order and connection drawing.
- Batch-linked material test report with methods.
- Dimensional and gauge inspection record.
- Nipple or pin identification and pairing record where applicable.
- Packaging and pre-shipment inspection evidence.
- Receiving inspection record for transport damage.
For product-level discussion, use the JY Carbon small- and medium-diameter graphite electrode page. The related selection guide on nipples and threads should be used when the main task is defining a replacement order rather than reviewing a completed quality package.
