What should be checked when electrodes arrive?
Inspect graphite electrodes before storage or use and preserve the shipment context. Photograph the unopened package, marks and visible damage; verify count and batch identity; then inspect supports, electrode bodies, end faces, sockets/nipples and agreed dimensions against the packing list and drawing. Isolate questionable items and report facts promptly without assigning cause from one symptom.

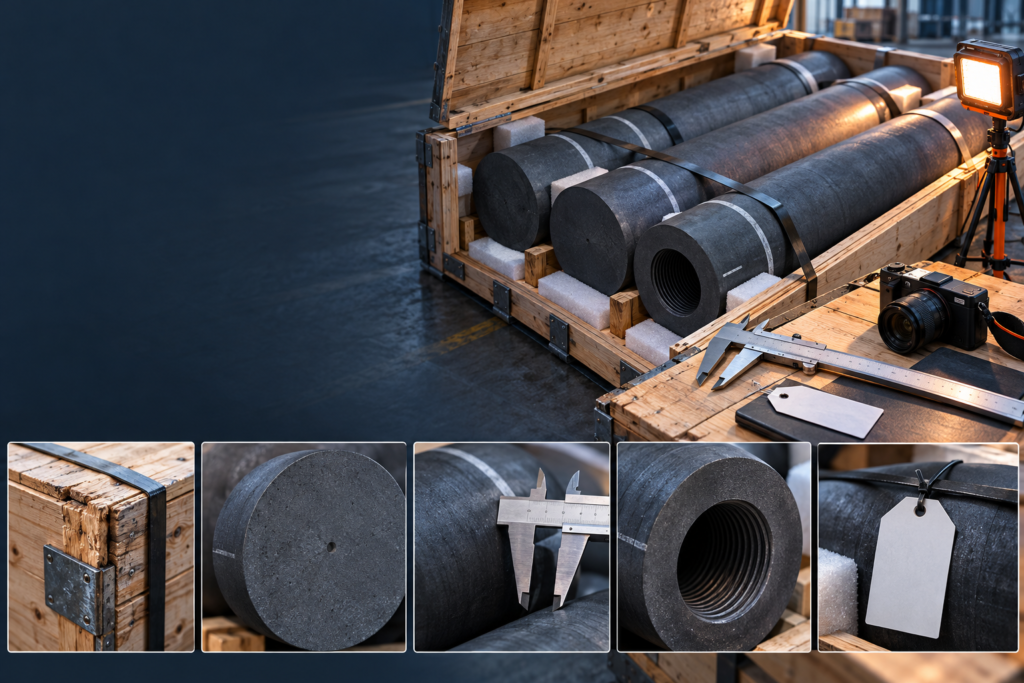

Receiving sequence and evidence
| Check | Confirm | Why it matters |
|---|---|---|
| Before opening | Package sides, seals/straps, labels and impact/moisture signs | Preserves transport context. |
| Identity and count | Packing list, item/batch marks, pieces and nipple scope | Confirms what arrived. |
| Physical condition | Body, edges, end faces, socket/thread and protective caps | Locates visible damage. |
| Dimensions | Only agreed receiving dimensions using suitable tools | Compares to the controlled drawing. |
| Disposition | Accepted, held for review or segregated nonconformity | Prevents questionable parts entering use. |
From arrival condition to a traceable receiving decision
Photograph the sequence, not just the defect
Use wide images to show package and item location, then medium and close views for the condition. Include the label or batch identity in a separate clear image. A close-up without scale or context may show a crack but not which piece, package or shipment it belongs to.
Protect evidence during unpacking
Use an approved lifting and unpacking method, keep removed protection available for review, and avoid creating new edge or thread damage during inspection. If safe handling is uncertain, stop and use the site’s material-handling procedure rather than improvising.
Report observations separately from cause
Describe location, size or extent according to the approved inspection method, identity, packaging condition and time discovered. Cause analysis can then consider manufacturing, packing, handling, transport and storage evidence. Receiving staff should not convert a visual observation directly into a fault verdict.
Extended field guide: turning the article into a controlled decision
Troubleshooting should begin by preserving facts, not by selecting a favored cause. A symptom becomes useful evidence only when its location, timing, measurement method, component identity and operating context are recorded together. The extended review below structures that work.
The final output should be a defensible disposition: what is known, which explanations remain possible, what evidence will discriminate among them and what can be done safely meanwhile.
Use a working file, not an email summary. Create one review file for the topic and give it an owner, date and revision. Include the requirement, the offered or observed condition, the source for each statement, the decision status and the next action. Emails, chat messages and photographs can be linked as evidence, but the controlled file should show the latest conclusion. This prevents an early assumption from surviving after later information changes the decision.
Do not mark the review complete merely because every row contains text. Completeness means that the text is traceable and adequate for its intended decision. Where confidentiality limits access to a drawing or production record, record who reviewed it and what bounded conclusion was approved without copying unsupported details into the article or order.
How to document each critical input
| Critical input | Controlled record | Review and hold-point rule |
|---|---|---|
| Before opening | Package sides, seals/straps, labels and impact/moisture signs. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Preserves transport context. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Identity and count | Packing list, item/batch marks, pieces and nipple scope. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Confirms what arrived. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Physical condition | Body, edges, end faces, socket/thread and protective caps. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Locates visible damage. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Dimensions | Only agreed receiving dimensions using suitable tools. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Compares to the controlled drawing. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Disposition | Accepted, held for review or segregated nonconformity. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Prevents questionable parts entering use. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
Use the input table as a live technical-control sheet rather than a one-time questionnaire. On the first pass, record only what the buyer and plant can verify. On the second pass, add the supplier’s proposed definition without overwriting the original requirement. On the third pass, record the agreed position and link it to the drawing, specification, measurement or named technical approval that closed the difference. This sequence preserves how the decision changed and prevents the latest wording from erasing an earlier conflict.
The “requirement,” “proposal” and “observed result” labels are especially important. A requirement states what the order needs; a proposal states what the supplier is offering; an observed result states what was measured or seen for an identified item or period. If the three are placed in one cell without labels, a reviewer may mistake a proposed value for an accepted limit or a single observation for a permanent specification. Keep the roles separate until the responsible technical reviewer explicitly reconciles them.
Give every row a simple status such as confirmed, proposed, pending clarification or not applicable, and require a reason whenever “not applicable” is selected. A status without supporting evidence is only a workflow marker; it is not technical proof. Record the evidence reference in the same row so that a later reviewer can move directly from the conclusion to the drawing, report, calculation, photograph or approval that supports it. Where two sources conflict, retain both references and show which source controls the current decision.
Review the table at defined handoffs rather than waiting for the end. Typical checkpoints include inquiry release, supplier clarification, technical comparison, order confirmation, pre-production approval and final acceptance. The exact checkpoints depend on the article topic and order stage, but each review should confirm that new information has been incorporated, old assumptions have been superseded visibly and open items still have an owner and closing condition.
A practical end-to-end review workflow
| Review action | How to execute it | Required output before moving on |
|---|---|---|
| Preserve the first state safely | Record the condition before cleaning, adjustment, dismantling or material mixing whenever safety allows. Follow plant isolation and handling procedures; evidence collection never overrides safety. | A safely preserved initial-condition record with item identity, time, location and any actions already taken. |
| Describe the symptom precisely | Record location, time, extent, frequency, measurement method and comparison point. Replace labels such as “bad joint” or “bad paste” with observable facts. | A neutral symptom definition covering extent, frequency, measurement method and comparison point. |
| Build one event timeline | Align material/component identity, operating changes, alarms, maintenance, measurements and human observations. Mark estimated times as estimates rather than converting them into facts. | One aligned event timeline linking component or material identity, operations, alarms, maintenance and observations. |
| List competing explanations | Include material, geometry, installation, equipment, operation, transport, measurement and record errors where relevant. Do not rank them by habit or convenience. | A hypothesis matrix that keeps competing material, geometry, installation, equipment, operation and evidence explanations visible. |
| Choose discriminating checks | Prioritize checks that are safe, preserve evidence and can separate two or more explanations. A check is valuable because of what it distinguishes, not because it is easy to perform. | A prioritized check plan showing which safe test or inspection can distinguish between the remaining explanations. |
| Document disposition and follow-up | State what is accepted, isolated, retested, monitored or escalated, who owns the action and what closes it. If evidence is insufficient, record an unresolved outcome. | A controlled disposition and follow-up record with owners, close-out evidence and unresolved limitations. |
The six steps are sequential, but they do not require every related activity to stop while a technical point is open. Preliminary comparison, information collection and commercial discussion may continue when the assumption and hold point remain explicit. What should not happen is silent progression: production release, final approval, publication or acceptance commitments must not rely on an unresolved field.
When a step sends the review backward, record why. New evidence may show that a revision, sample basis, calculation boundary or proposed definition is incomplete. Returning to an earlier step is not process failure; it is controlled correction. Update the evidence index, preserve the superseded revision and restate the downstream impact so that commercial, engineering, quality and operating teams continue to work from the same definition.
The output column is the gate between steps. Before a team marks a step complete, it should be possible for another qualified person to locate the stated output, identify its revision and understand who accepted it. If the output exists only in a call or an unindexed message, copy the bounded conclusion into the controlled file and link the original communication where appropriate. This avoids repeating the same clarification when personnel or suppliers change.
Close the workflow with a short release note that lists the subject, accepted definition or calculation basis, decisive evidence, remaining limitations and next owner. The note should not repeat the entire article; its purpose is to show exactly what was decided and what was not. If evidence remains insufficient, an honest pending or conditional result is stronger than a confident statement that cannot be traced.
Evidence quality: what deserves more weight?
Controlled order evidence. An approved drawing, agreed technical specification, purchase-order attachment or named test method is strong for the exact item and revision it controls. It should still be checked for scope: a drawing may define geometry without proving material properties, while a laboratory result may describe a specimen without proving connection fit. Strong evidence is specific, not universal.
Batch, item and event records. COAs, inspection sheets, process travellers, receiving photos, operating logs and maintenance records can support what happened to an identified batch, item or period. Their usefulness depends on identity, timing and method. A batch result should not be stretched into a permanent capability claim, and one operating event should not become an industry frequency statement.
General product and technical information. Product pages, catalogues and explanatory articles are useful for defining questions and preliminary ranges. They do not automatically become the acceptance basis for a purchase. Where a public table and an order document differ, the approved order document should control the transaction, and the difference should be resolved rather than hidden.
Photographs and recollections. Images are valuable for condition, identity and sequence when they include context. They rarely prove a tolerance, material property or root cause by themselves. Recollections can direct an investigation but should be distinguished from time-stamped records. Label estimates and later reconstructions clearly.
Roles and handoffs
The buyer or commercial team should own the inquiry scope, quantity, destination and agreed commercial boundary. Plant or application engineering should confirm equipment duty, operating context and technical constraints. Quality personnel should define the evidence, method, inspection and exception process. The supplier should state the proposed product, manufacturing or processing boundary, document availability and unresolved assumptions. Receiving or operations personnel should preserve item identity and report observed conditions without changing the technical definition.
A useful handoff contains four things: the latest controlled input, the decision made, the evidence supporting it and the open action with an owner. “Engineering has checked it” is not enough unless the checked revision and bounded conclusion are visible. Equally, a long attachment list is not a handoff if no one has reconciled conflicting identities or revisions.
Illustrative review scenario
Assume a buyer receives an offer that appears to answer the headline question in Receiving Graphite Electrodes: Damage, Dimensions and Joint Evidence, but two fields are incomplete. The team first copies the supplier’s wording without editing it, then compares Before opening, Identity and count, Physical condition, Dimensions, Disposition with the buyer’s requirement. Confirmed matches are recorded as such; differences are described neutrally; unknowns remain blank or marked pending.
The team does not fill missing technical values from another supplier’s catalogue. Instead, it sends a focused clarification that names the exact drawing, record, measurement or plant input required. Commercial comparison may continue using explicit assumptions, but technical approval remains on hold wherever the missing field can change fit, interpretation, acceptance or responsibility. When the reply arrives, the reviewer updates the controlled file, records the revision and explains whether the new evidence closes the question.
This scenario is intentionally generic. It demonstrates a review discipline, not a product recommendation, performance prediction or customer case. Actual values and acceptance decisions must come from the relevant furnace, order and approved technical documents.
Common failure modes and corrections
- Treating before opening as already understood. The correction is to restate “Package sides, seals/straps, labels and impact/moisture signs” in the order or investigation record and verify why it matters: preserves transport context.
- Treating identity and count as already understood. The correction is to restate “Packing list, item/batch marks, pieces and nipple scope” in the order or investigation record and verify why it matters: confirms what arrived.
- Treating physical condition as already understood. The correction is to restate “Body, edges, end faces, socket/thread and protective caps” in the order or investigation record and verify why it matters: locates visible damage.
- Treating dimensions as already understood. The correction is to restate “Only agreed receiving dimensions using suitable tools” in the order or investigation record and verify why it matters: compares to the controlled drawing.
- Treating disposition as already understood. The correction is to restate “Accepted, held for review or segregated nonconformity” in the order or investigation record and verify why it matters: prevents questionable parts entering use.
Two broader mistakes deserve attention. First, do not turn the absence of evidence into a positive statement. “No defect reported” is different from “inspection confirmed no defect.” Second, do not let a technically attractive explanation outrun the record. If several explanations remain consistent with the evidence, state that uncertainty and define the next discriminating check.
Final decision record
Before publication, quotation, purchase approval or technical disposition, write a short decision note that another qualified reviewer can follow without relying on the original conversation. It should identify the controlled item or question, list the decisive evidence, state important limits, record unresolved matters and name the next owner. The final output should be a defensible disposition: what is known, which explanations remain possible, what evidence will discriminate among them and what can be done safely meanwhile.
A robust decision note is brief compared with the evidence behind it, but it is not vague. It avoids claims such as “industry standard,” “fully compatible,” “all documents available” or “material caused the event” unless the relevant controlled evidence supports that exact scope.
Questions buyers often need to resolve
Should a damaged package be opened immediately?
Follow site safety and claim-preservation procedures. Document the unopened condition first, then open under an agreed inspection process when it is safe to do so.
Can a receiving photo prove a dimensional nonconformity?
Not by itself. Use the approved drawing, suitable calibrated equipment and the agreed measurement method; photos support identity and condition evidence.
