Summary of Findings

Furnace enclosure is not a detail of gas handling that stops at the hood. It changes three conditions the electrode column lives in: the atmosphere surrounding the exposed section, the mechanical seal bearing on the casing, and the route by which gas evolved inside the paste can leave. That is why YB/T 5215 separates closed-top paste from standard paste as distinct grade families rather than treating enclosure as a preference.

Ferroalloy submerged arc furnaces fall into three classes. Open furnaces burn virtually all of the carbon monoxide rising through the charge with induced air at the furnace top, under a hood at least 1 metre above the furnace shell. Covered, semi-enclosed furnaces fit a water-cooled steel cover close to the shell to reduce air infiltration and therefore combustion. Sealed furnaces carry mechanical seals around the electrodes and sealing compound at the outer edges, with little if any air infiltration or undercover combustion (U.S. EPA, AP-42 §12.4). As the degree of enclosure increases, less gas reaches the hood system and the carbon monoxide concentration in the furnace gas rises — and that gradient is what the paste specification has to follow.

Key Findings

• Three furnace classes, not two. Open, covered or semi-enclosed, and sealed. Covered furnaces sit between the other two in every respect that matters to the electrode, and a specification written for either extreme will misfit them.
• The atmosphere around the exposed column changes with enclosure. Rising enclosure means rising CO concentration in the furnace gas and falling combustion with induced air (EPA, AP-42 §12.4), which changes the oxidation route on the exposed section.
• A sealed furnace adds a mechanical interface at the casing. Seals bear on the electrode casing itself, which introduces a constraint that does not exist on an open furnace.
• Gas evolved inside the paste still has to leave. Enclosure constrains the path above the paste level, which is the mechanism behind the different volatile matter ranges assigned to the two grade families under YB/T 5215.
• Enclosure carries a process constraint of its own. Products prone to highly variable releases of process gases are typically not made in covered furnaces for safety reasons (EPA, AP-42 §12.4) — so furnace class is partly determined by the product, not chosen freely.

Contents

1. What are the three furnace classes, and how do they differ?
2. What changes for the electrode when the furnace is enclosed?
3. Why do the two grade families exist?
4. How is the grade family selected in practice?
5. What should the purchase specification state differently?
6. Frequently asked questions
7. Related reading

1. What Are the Three Furnace Classes, and How Do They Differ?

The classification used in the U.S. EPA’s ferroalloy production reference describes three arrangements, distinguished by how much air reaches the gas leaving the charge (AP-42 §12.4).

Class	Cover arrangement	Gas behaviour	Control
Open	Fume collection hood at least 1 m above the furnace shell; moveable panels or screens may reduce the open area	Carbon monoxide rising through the charge burns with induced air between the charge surface and the hood; virtually all CO and much of the organic matter burns at the furnace top	Fabric filters
Covered / semi-enclosed	Water-cooled steel cover fitted closely to the furnace shell; mix-sealed variants partially close the hood openings with charge material	Air infiltration reduced, therefore combustion reduced and the volume of gas requiring collection falls	Wet scrubbers
Sealed	Mechanical seals around the electrodes; sealing compound around the outer edges	Little if any air infiltration or undercover combustion; the scrubbed high-CO gas may be used within the plant or flared	Scrubbers

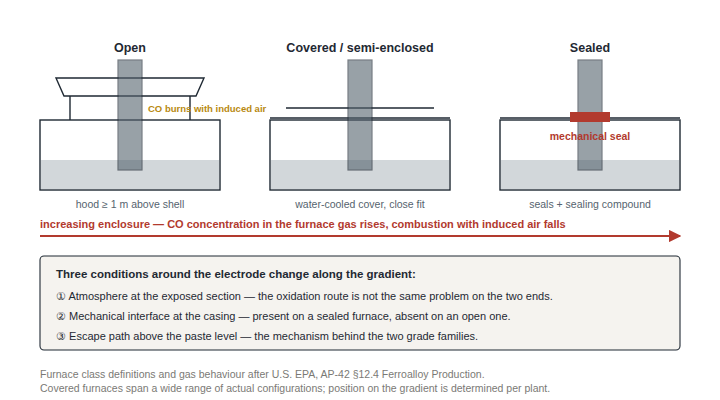

Table 1. The three classes form a gradient rather than a set of alternatives: as the degree of enclosure increases, less gas is produced for capture by the hood system and the concentration of carbon monoxide in the furnace gas increases (EPA, AP-42 §12.4).

Two constraints attach to the classes themselves and are worth stating before any paste question arises. Products prone to highly variable releases of process gases are typically not made in covered furnaces, for safety reasons. And on a sealed furnace, water leaks from the cover into the furnace must be minimised, since they lead to excessive gas production and unstable furnace operation (EPA, AP-42 §12.4). Furnace class is therefore partly imposed by the product and the plant, not selected freely for each campaign.

2. What Changes for the Electrode When the Furnace Is Enclosed?

The atmosphere around the exposed section. On an open furnace, carbon monoxide burns with induced air immediately above the charge, so the exposed column stands in a combustion zone with oxygen present. As enclosure increases, that combustion is progressively suppressed and the CO concentration in the furnace gas rises (EPA, AP-42 §12.4). The oxidation route on the exposed column is therefore not the same problem on the two furnace types, and a consumption comparison between an open and a sealed furnace is not comparing like with like. The four consumption routes and how to separate them are treated in the consumption breakdown article.

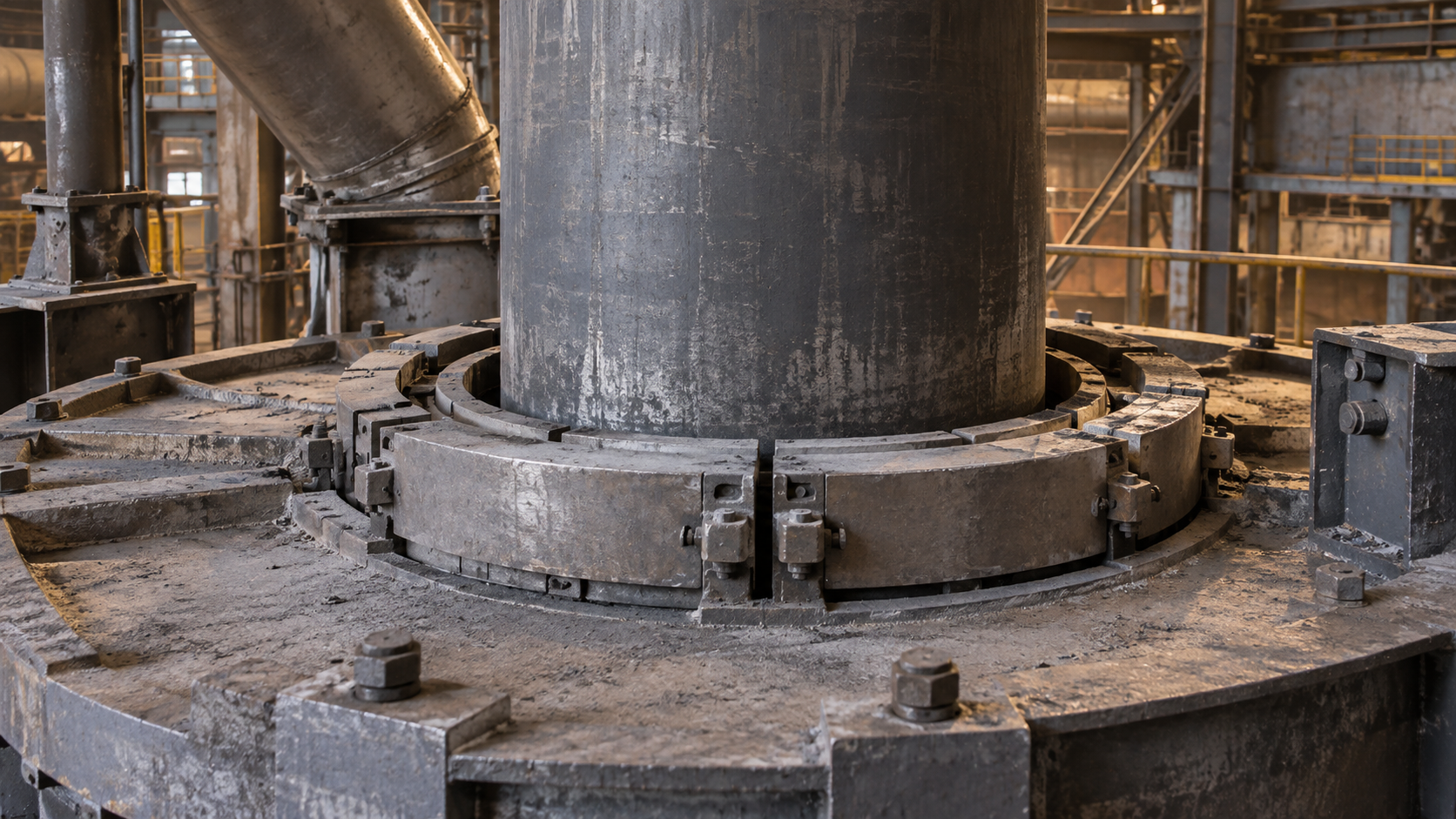

The mechanical interface at the casing. A sealed furnace carries mechanical seals around the electrodes. That places a moving seal against the casing surface, in a region where the casing is also carrying heat away from the column. Casing condition, dimensional consistency and surface quality acquire a function on a sealed furnace that they do not have on an open one — and this is a casing and hardware question rather than a paste question, which is precisely why it is worth separating from the paste discussion when a problem arises at that height.

The escape path above the paste level. Volatile matter evolving inside the column has to leave upward through material that is still permeable, and then into the space above the paste level. What that space is — open to a hood, under a close-fitting water-cooled cover, or inside a sealed enclosure — determines the conditions the escaping gas meets. This is the mechanism that stands behind the two grade families, and it is treated next.

3. Why Do the Two Grade Families Exist?

Because the same paste cannot satisfy both gas regimes. YB/T 5215 distinguishes closed-top paste from standard paste and assigns them different volatile matter ranges; the specific ranges should be read from the standard text rather than from a secondary source, and this article deliberately does not reproduce them.

The mechanism is the one described above. Volatile matter is the fraction of the binder that leaves as gas during baking, and its departure is what converts paste into conducting carbon — the process treated in the volatile matter article. How much gas the paste may evolve, and how quickly, is constrained by what happens to that gas after it leaves the column. A regime that suppresses combustion above the paste level and runs a high-CO atmosphere does not tolerate the same gas load as one that burns it off with induced air at the furnace top.

The practical consequence for a buyer is the one stated in the volatile matter article and worth repeating here: a volatile matter figure is meaningless without the grade family it belongs to. A value that is out of specification for standard paste can sit mid-range for closed-top paste. Any comparison between two supplier offers, or between two batch reports, must first establish that both are quoted against the same family.

4. How Is the Grade Family Selected in Practice?

The selection is not a judgement call in most cases; it follows from the furnace. The sequence is:

1. Establish the furnace class against the three definitions in Section 1 — including whether a nominally covered furnace is mix-sealed, since that changes the air infiltration and therefore the gas regime.
2. Take the grade family from the class. A sealed furnace takes closed-top paste. An open furnace takes standard paste. A covered furnace requires a decision, treated below.
3. Set the parameters within the family from the product specification and the electrical conditions, following the derivation procedure in the specification article.
4. Confirm with a controlled trial before committing a full supply, particularly where the furnace class was ambiguous.

The covered-furnace case. Semi-enclosed furnaces do not have a default answer, because they cover a wide range: a close-fitting water-cooled cover with minimal infiltration sits near the sealed end, while a mix-sealed arrangement with substantial open area sits nearer the open end. The determination is made from the plant’s own evidence — the measured CO concentration in the furnace gas, the observed extent of undercover combustion, and the behaviour of the paste level and off-gas with the paste currently in use. Where that evidence is ambiguous, the controlled trial is not an optional confirmation step but the actual decision method.

5. What Should the Purchase Specification State Differently?

Four items change with furnace class, and each should be stated explicitly rather than left to be inferred from the parameter values:

• The grade family, named — closed-top paste or standard paste. This is the single most consequential line in the specification and the one most often omitted, since parameter values alone do not identify the family unambiguously.
• The furnace class and, for a covered furnace, its actual configuration — cover type, extent of open area, whether mix-sealed. A supplier reviewing a specification uses this to sanity-check the parameter set against the application.
• Any casing constraint arising from the seals, on a sealed furnace: dimensional tolerance and surface condition where the seal bears. This belongs in the casing specification rather than the paste specification, but it should be raised in the same technical review.
• The off-gas conditions the plant runs to, where they are known. This is what allows a technical review of the specification to be more than a check that the numbers fall inside a standard.

6. Frequently Asked Questions

Q1. Our furnace is described as semi-closed. Which grade family applies? Not determinable from the description alone, because semi-closed covers a wide range of actual configurations. Establish where the furnace sits on the enclosure gradient using the plant’s own evidence — the CO concentration in the furnace gas, the extent of combustion under the cover, and the current behaviour of paste level and off-gas — and treat a controlled trial as the decision method rather than as confirmation.

Q2. Can standard paste be used in a closed furnace if the parameters happen to fall inside the closed-top range? The families are defined by more than one parameter, and matching on volatile matter alone does not establish equivalence. Where a substitution is being considered, it should be handled as a supplier or formulation change: a controlled changeover with the operating cadence reviewed in advance, not a like-for-like substitution.

Q3. We are converting an open furnace to a covered one. When should the paste change? Treat the paste change as part of the conversion project rather than as a follow-up. The gas regime changes at commissioning, and the operating cadence calibrated on the open furnace will no longer match the new thermal and gas conditions. Plan the changeover so that the paste family, the slipping cadence and the off-gas system are reviewed together.

Q4. Does furnace class change the consumption we should expect? It changes the oxidation route on the exposed column, which is one of four consumption routes. Comparing a consumption figure across furnace classes is not a valid comparison, and neither is carrying a target figure from an open furnace to a sealed one. Establish a baseline for the furnace as configured, using the procedure in the consumption article.

Q5. Who should specify the casing where seals bear? The furnace or seal supplier sets the requirement; the casing supplier meets it. The paste supplier is not party to it, and raising it in the paste technical review is useful only to ensure it has not been overlooked. A seal problem presenting as an electrode problem is a common misattribution on sealed furnaces.

7. Related Reading

• Deriving an Electrode Paste Specification for a Specific Furnace (companion article) — the procedure that sets parameters once the family is fixed
• What Volatile Matter Actually Does Inside a Söderberg Electrode — the gas evolution that the escape path has to accommodate
• Why Electrode Paste Requirements Differ Across Ferroalloy, Silicon Metal, and Calcium Carbide Furnaces — the process-side counterpart to this article
• Where the Paste Goes: Building a Consumption Breakdown for Your Own Furnace — why consumption is not comparable across furnace classes
• How to Plan a Controlled Electrode Paste Trial When Changing Suppliers — the decision method referenced in Section 4
• Anatomy of a Söderberg Electrode System — the casing and hardware around the column

Author and Review

Written by Sterling Yang, Senior Vice President at Jiyang Carbon.

This article was reviewed by Mr. Yang, Technical Director at Jiyang Carbon, drawing on 40+ years of hands-on experience in carbon processing.

The furnace class definitions, gas behaviour and operating constraints cited here are taken from the U.S. EPA’s published reference on ferroalloy production, cited in this article. The volatile matter ranges assigned to the two grade families under YB/T 5215 are deliberately not reproduced; a purchase specification should cite the standard text itself. Jiyang Carbon supplies both closed-top and standard grades, with custom formulations available, and reports seven parameters per batch on a traceable Certificate of Analysis (COA).
