Summary of Findings

Softening point describes when the binder becomes mobile. Volatile matter describes how much of it will eventually leave; softening point describes what happens long before that, at the paste level, where a charge either merges into the melt or sits on top of it. A paste can be within specification on every other parameter and still fail here.

The requirement is set by the furnace, not by the paste. Binder softening points reported across suppliers span 53–75 °C, with the appropriate value depending on furnace operating conditions, and the consequences of a mismatch run in both directions: a value at the low end proved problematic in high-current operation, while at the high end, in furnaces running lower current density, the paste melted insufficiently — producing low liquid paste levels, layering of paste from successive charges, and poor electrode formation (Wilkinson et al., Infacon IX). That span is an observed range across suppliers, not a recommendation, and no value within it is correct in the abstract.

Key Findings

• Softening point governs melt-down, not baking. It acts at the paste level, hundreds of degrees below the baking transition, and the failures it produces appear there rather than in the baked column.
• Both directions fail, for different reasons. Too low for the thermal conditions and the paste becomes mobile earlier than the operating practice assumes; too high and it does not merge, producing layering and a low liquid paste level (Wilkinson et al., Infacon IX).
• Layering is a thermal mismatch, not a manufacturing defect. An interface between two charges that did not merge originates in the relationship between softening point and the conditions at the paste level, and is routinely misreported as a paste quality problem.
• Three plant-side inputs set the requirement: current density, charging cadence and quantity, and the ambient and storage temperatures the material passes through before it is charged.
• The method has to be named. Mettler softening point under ASTM D3104 and ring-and-ball methods return different numbers for the same pitch, so a contract value without a method is not enforceable.

Contents

1. What does softening point actually govern?
2. What happens when it is too high for the furnace?
3. What happens when it is too low?
4. Which plant-side conditions set the requirement?
5. How is a working window determined?
6. What should the specification state?
7. Frequently asked questions
8. Related reading

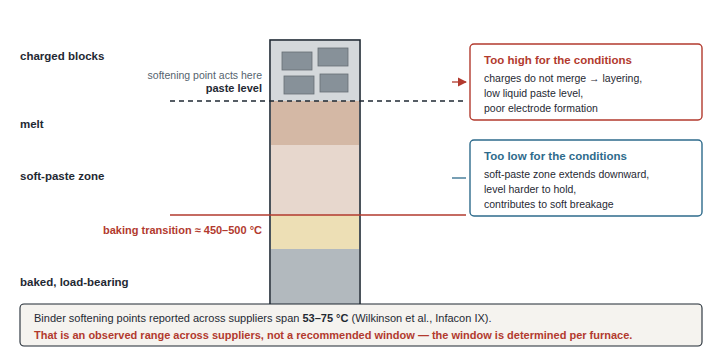

1. What Does Softening Point Actually Govern?

The transition of the binder from a solid to a mobile state. In service that transition happens at the paste level, in the space where freshly charged blocks meet the melt beneath them and the heat rising from the column below.

Three things depend on it. Whether a charge merges into the melt or remains as a distinct layer. Whether the melt levels across the casing cross-section or leaves voids. And how much liquid paste stands above the baking zone at any time, which is what the paste level indication is reading.

None of that is baking. The baking transition occurs at approximately 450–500 °C and converts paste into conducting carbon; softening point acts hundreds of degrees below it and determines what material arrives at the baking zone in the first place. Confusing the two leads to a common diagnostic error — treating a melt-down problem as a baking problem and adjusting slipping cadence, which does not address it.

2. What Happens When It Is Too High for the Furnace?

The paste melts insufficiently. In furnaces running lower current density, a softening point at the high end of the reported range produced low liquid paste levels, layering of paste from successive charges, and poor electrode formation (Wilkinson et al., Infacon IX).

Each of those three has a distinct signature at the furnace:

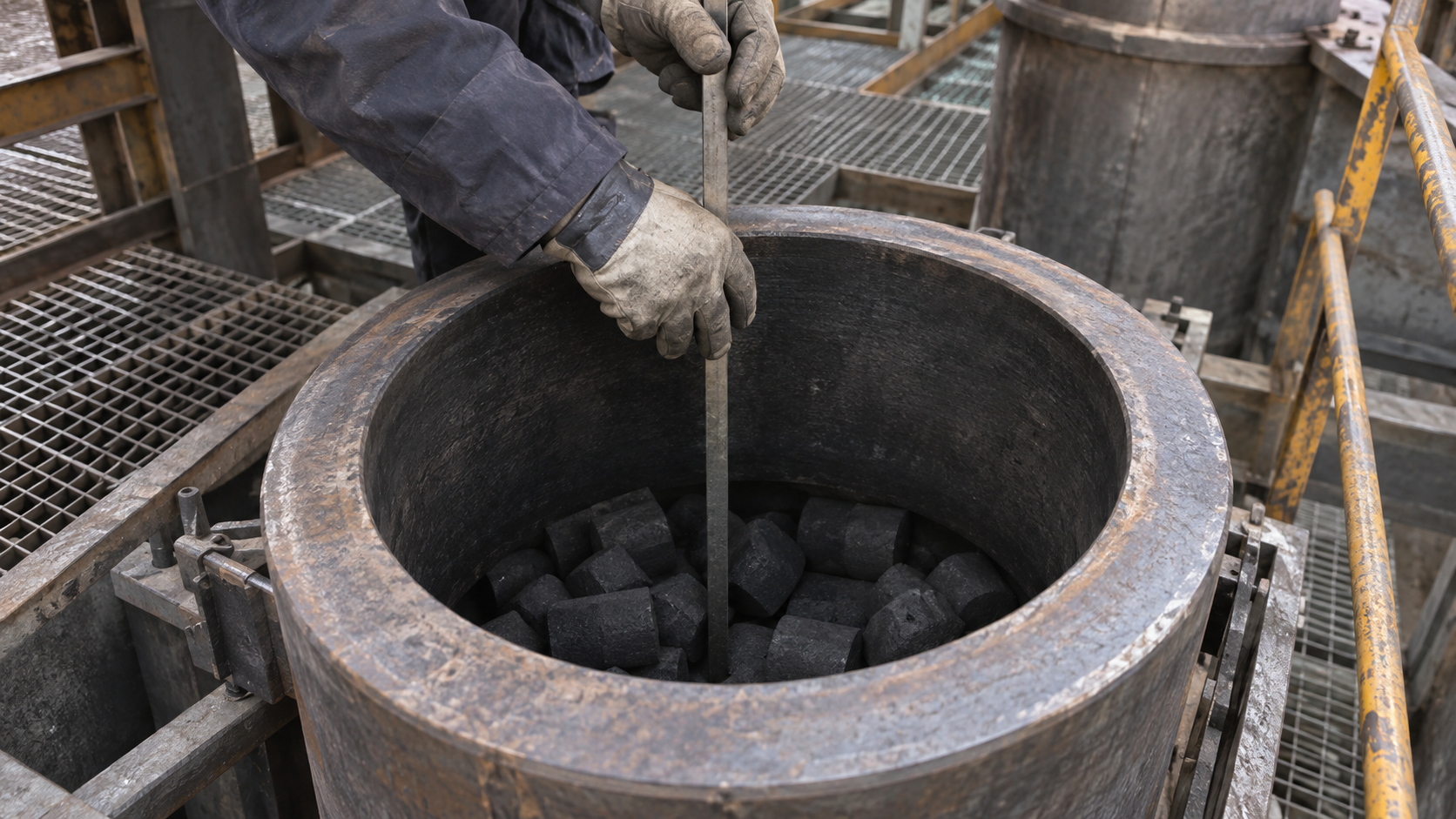

• Low liquid paste level. The level indication reads lower than the charging record implies, because part of what was charged has not melted. Where this is read as a level control problem and answered by charging more, the result is a deeper column of unmelted material rather than a corrected level.
• Layering. An interface between two charges that did not merge. It travels down the column as a plane of weakness and is frequently reported as a paste manufacturing defect, when its cause lies in the thermal conditions the paste met.
• Poor electrode formation. The consequence of the first two: a column whose cross-section is not uniform, arriving at the baking zone in that condition.

Unit size interacts with this but does not substitute for it. A smaller block reaches its softening temperature throughout its volume sooner, which helps at the margin; where the softening point is wrong for the thermal conditions, reducing block size will not correct it. That relationship is treated in the block shape article.

3. What Happens When It Is Too Low?

The binder becomes mobile at a lower temperature than the operating practice assumes. A softening point at the low end of the reported range proved problematic at high-current furnaces (Wilkinson et al., Infacon IX).

The mechanism is that the soft-paste zone extends further down toward the region that has to carry load. That increases the self-weight of soft material bearing on the transition zone, which is one of the recognised contributors to soft breakage — treated with the other two in the breakage diagnostic guide. It also makes the paste level harder to hold, since the material is more fluid than the charging practice was calibrated for.

The asymmetry between the two directions is worth noting. A softening point too high produces problems that are visible at the paste level and are usually diagnosed there. A softening point too low produces problems that surface further down the column, often as a breakage, and are diagnosed as something else.

4. Which Plant-Side Conditions Set the Requirement?

Current density. This is the dominant input, because it sets the resistive heat generated in the column and therefore the thermal conditions reaching the paste level from below. It is derived from furnace power, electrode current and diameter, following the procedure in the specification article. A furnace running at high current density supports a higher softening point than one running low.

Charging cadence and quantity. A large charge added infrequently presents more cold material at once than the same tonnage added in smaller increments. The thermal condition at the paste level is not a constant but a cycle, and the softening point has to suit the low point of that cycle rather than its average.

Ambient and storage temperature. The material arrives at the charging platform at whatever temperature the storage and handling route left it. In cold conditions that is a real thermal deficit at the moment of charging, and a plant whose behaviour changes between seasons is usually seeing this rather than a change in the paste. Storage conditions are part of the specification for that reason, and are treated in the packaging and storage article.

5. How Is a Working Window Determined?

There is no transferable figure — the reported 53–75 °C span is what suppliers supply, not what any furnace requires. The determination is made from the plant’s own operation:

1. Record the current baseline. Over a period of stable operation, log the softening point in use from the Certificate of Analysis (COA), the charging interval and quantity, the paste level response after each charge, and any layering or level-control events.
2. Identify which direction the evidence points. Low level response, layering, or unmelted material at the level indicates a softening point too high for the conditions. Difficulty holding level, unusually fluid behaviour, or soft breakage with the paste otherwise in specification indicates the opposite.
3. Change one variable. Trial an alternative softening point with charging interval, quantity and load pattern held constant. Changing softening point and block form together makes the result unattributable.
4. Judge across a full cycle, including the seasonal range if the plant experiences one.
5. Record the resulting window against the operating conditions that produced it, so that a later load or cadence change can be assessed against it.

The output is a window for one furnace under one operating regime, with the regime recorded. That is what belongs in the specification.

6. What Should the Specification State?

Four items, and the first two are frequently omitted:

• The value or window, as a contract figure derived from the plant’s own determination.
• The method, with edition year. Mettler softening point under ASTM D3104 and ring-and-ball methods return different numbers for the same pitch. A value without a method cannot be compared between suppliers or enforced against one.
• The operating conditions the window was derived under — current density and charging cadence — so that a technical review can check the value against the application rather than only against a standard.
• The storage conditions assumed, since the thermal state at charging is part of what the window was set against.

7. Frequently Asked Questions

Q1. Our layering problem persists after changing to a smaller block size. What next? Review softening point against current density before making a further form change. Where the softening point is too high for the thermal conditions at the paste level, the paste melts insufficiently regardless of unit size, and reducing size addresses the margin rather than the cause (Wilkinson et al., Infacon IX). Compare the COA softening point against the contract value and against the previous batches, then check whether current density has changed.

Q2. Two suppliers quote different softening points. Which is better? Neither, in the abstract. The reported range across suppliers spans 53–75 °C, and the value that suits a furnace depends on its operating conditions. Establish your own window first; then the question becomes whether each offer falls inside it, which is answerable.

Q3. Our furnace behaves differently in winter. Is the paste changing? Check the material’s temperature at charging before questioning the batch. The thermal state the material arrives in is part of what the softening point window was set against, and a seasonal change in storage and handling conditions produces a seasonal change in melt-down behaviour with no change in the paste. Compare the COAs across the period to confirm.

Q4. Can softening point be adjusted after delivery? No. It is a property of the binder selected at formulation. What can be adjusted is charging cadence and quantity, and — within limits — the thermal condition at the paste level through load. Where a batch sits at either edge of the contract window, review the charging practice before the batch enters service.

Q5. Does softening point need to be specified if volatile matter is already specified? Yes. They describe different things: volatile matter is how much binder will leave, softening point is when it becomes mobile. A paste can be within range on volatile matter and unsuitable on softening point, and the internal-consistency review treats the two as a pair precisely because neither substitutes for the other.

8. Related Reading

• Deriving an Electrode Paste Specification for a Specific Furnace (companion article) — where softening point enters the derivation
• What Volatile Matter Actually Does Inside a Söderberg Electrode — the parameter softening point is most often confused with
• Paste Block Shape and Size: How Geometry Affects Feeding and Sintering — the unit-size interaction in Section 2
• Söderberg Electrode Hard Breakage vs. Soft Breakage — where a softening point at the low end surfaces
• Reading a Seven-Parameter Test Report for Internal Consistency — softening point and volatile matter as a checked pair
• Electrode Paste Packaging and Storage for Export Orders — the storage conditions the window is set against

Author and Review

Written by Sterling Yang, Senior Vice President at Jiyang Carbon.

This article was reviewed by Mr. Yang, Technical Director at Jiyang Carbon, drawing on 40+ years of hands-on experience in carbon processing.

The 53–75 °C span and the described consequences of a mismatch in either direction are taken from the published source cited in this article. That span is the range reported across suppliers, not a recommended window, and no recommended value by furnace type is given here — Section 5 provides a determination procedure instead. Jiyang Carbon reports softening point on every batch as one of seven parameters on a traceable Certificate of Analysis.
