Summary of Findings
Electrode paste block geometry affects packing voids, melt-down time, gas escape paths, and fines generated during handling. A suitable block or briquette size therefore depends on the casing, charging route, and thermal conditions at the paste level. It should be selected through a controlled furnace trial rather than copied from another plant.
Key Findings
- Four things are governed by block geometry: packing and void fraction in the casing, time to melt down and level, the escape path for evolved gas, and the quantity of fines generated in handling and charging.
- Larger blocks pack with larger voids. The voids close as the paste melts, but until they do, they interrupt both heat transfer and the continuity of the column at the paste level.
- Melt-down is thermal, not geometric alone. Where binder softening point is too high for the operating current density, the result is low liquid paste levels, layering of paste from successive charges, and poor electrode formation (Wilkinson et al., Infacon IX). Reducing block size does not correct a softening point mismatch.
- Fines are a cost, not a by-product. Increased fines loading contributes mechanical stress in the column (Wilkinson et al., Infacon IX), and fines segregate rather than distributing evenly. Handling practice therefore belongs in the specification.
- No universal size ratio exists. The suitable block dimension relative to casing diameter depends on casing size, charging method and thermal conditions at the paste level. The determination procedure below is used instead of a universal number.
Table of Contents
- In what forms is electrode paste supplied?
- What does block geometry actually control?
- Why do fines deserve separate attention?
- How is a suitable form and size determined for a given furnace?
- What should the purchase document specify?
- Frequently asked questions
- Related reading
In What Forms Is Electrode Paste Supplied?
Three families are in general use. Cylinders are supplied in a range of diameters; rectangular and trapezoidal blocks are supplied as moulded units; briquettes are smaller pressed units, often described by their rounded, pebble-like form. Suppliers across the market offer more than one of these, and the same formulation is generally available in several forms.
Jiyang Carbon supplies trapezoidal blocks and pebble-form briquettes with custom formulations available. Buyers can compare the available forms and batch parameters on the electrode paste product page. Export consignments are packed in one-tonne bulk bags.
Form is independent of grade. A closed-top paste and a standard paste can be supplied as either blocks or briquettes, and the parameters on the Certificate of Analysis (COA) do not change with the form. What changes is the behaviour between the charging platform and the melt.
What Does Block Geometry Actually Control?
Packing and void fraction. Units of any shape stack with voids between them. Larger units produce larger individual voids; smaller units produce more numerous but smaller ones. Until the paste melts and the voids close, they interrupt heat conduction downward through the column and leave the material above the melt discontinuous. This is the mechanism behind bridging, where a stable arch of unmelted material forms above a void and the level indication no longer corresponds to the actual paste level.
Time to melt down and level. A smaller unit reaches its softening temperature throughout its volume sooner. Where the thermal conditions at the paste level are marginal, unit size determines whether the charge merges into the melt or sits on top of it. The failure mode is layering: an interface between two charges that did not merge. Layering is frequently reported as a paste defect, but where it originates in a softening point too high for the operating current density it is a thermal mismatch, not a composition problem (Wilkinson et al., Infacon IX).
Gas escape path. Volatile matter evolving below must travel upward through the material above. A packed bed of smaller units offers a more distributed path; a bed of large units offers fewer, larger channels. Neither is universally preferable — what matters is that the path is not sealed off, which happens when a melt layer forms above material that is still evolving gas.
Fines generation. Every handling step — bag emptying, transfer, charging — breaks some material. Larger, denser units resist this better per tonne handled; briquettes offer more surface and more edges. The generated fines then behave as a separate material, addressed in the next section.

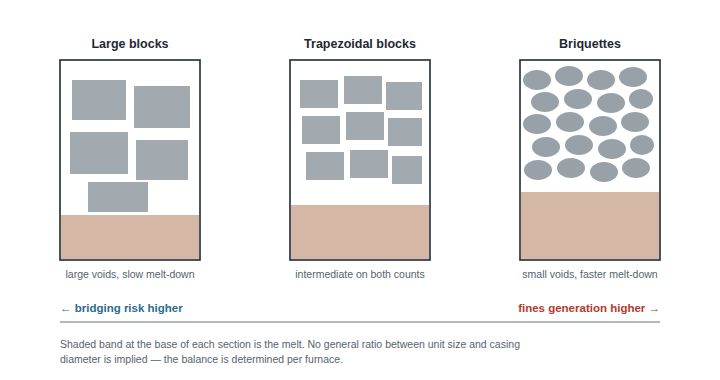

Figure. Larger units pack with larger voids and melt down more slowly; smaller units pack more closely and merge sooner but generate more fines in handling. Neither is universally correct — the balance is set by the casing and the thermal conditions at the paste level. Schematic; not to scale.
Why Do Fines Deserve Separate Attention?
Because fines do not distribute evenly. They migrate into the voids between larger units and concentrate at the bottom of a charge and against the casing wall, producing a material distribution that differs from the material as delivered. Increased fines loading was identified as a contributor to mechanical stress in an electrode management investigation (Wilkinson et al., Infacon IX).
Three practical consequences follow:
- The material at the melt is not the material on the COA. Segregated fines have a different aggregate size distribution from the batch as tested, and the effect is not captured by any parameter on the report.
- Fines change the local gas path. A fines-rich layer is less permeable than the surrounding packed bed, and gas that cannot pass through it takes another route or builds pressure.
- Fines are generated, not delivered. A consignment that arrives sound can still present as a fines problem after several handling steps, which makes storage and charging practice part of the specification rather than an operational detail.
Where fines are present in a delivered consignment rather than generated on site, the cause usually lies in transit and storage rather than in production; that case is treated in the receiving-inspection article.
How Is a Suitable Form and Size Determined for a Given Furnace?
No transferable ratio between block dimension and casing diameter exists in the published literature, and a figure carried over from another plant will not account for a different casing size, charging method or thermal condition at the paste level. The following determination procedure produces a defensible answer for a specific furnace:
- Record the current baseline. Over a period of stable operation, log the form and size in use, the charging interval and quantity, the observed paste level behaviour after each charge, and any bridging or layering events.
- Identify which constraint binds. Frequent bridging or slow level response points toward units that are too large for the thermal conditions. Frequent fines accumulation, dusting at the charging platform or fines-related handling loss points toward units that are too small or too friable for the handling route.
- Change one variable. Trial a single alternative form or size while holding charging interval, quantity and load pattern constant. Two simultaneous changes cannot be attributed.
- Judge over a full cycle. Assess across a period long enough to include the normal range of load and charging conditions, not a single shift.
- Record the outcome against the baseline, including the handling loss, so that the decision is available to whoever revisits it later.
The procedure is deliberately the same shape as a controlled paste trial. Where a form change coincides with a supplier or formulation change, use a controlled electrode-paste trial so the two variables remain separable.
What Should the Purchase Document Specify?
Form and dimensions belong in the purchase document alongside the chemical and physical parameters, because they determine what happens between delivery and the melt:
- Form and nominal dimensions, with the tolerance that will be accepted.
- Maximum proportion of undersize or fines at delivery, and the point at which it is assessed — at the port, or at the plant after unloading.
- Packing, since packing governs how much of the handling damage occurs before the material is under the buyer’s control. Bulk bags of a stated capacity, pallet configuration and stacking height should all be stated.
- Storage conditions assumed by the specification, so that a fines or caking claim can be assessed against a defined baseline.
These items are separable from the parameter specification and are frequently omitted from it. Where they are omitted, a fines dispute has no factual basis on either side.

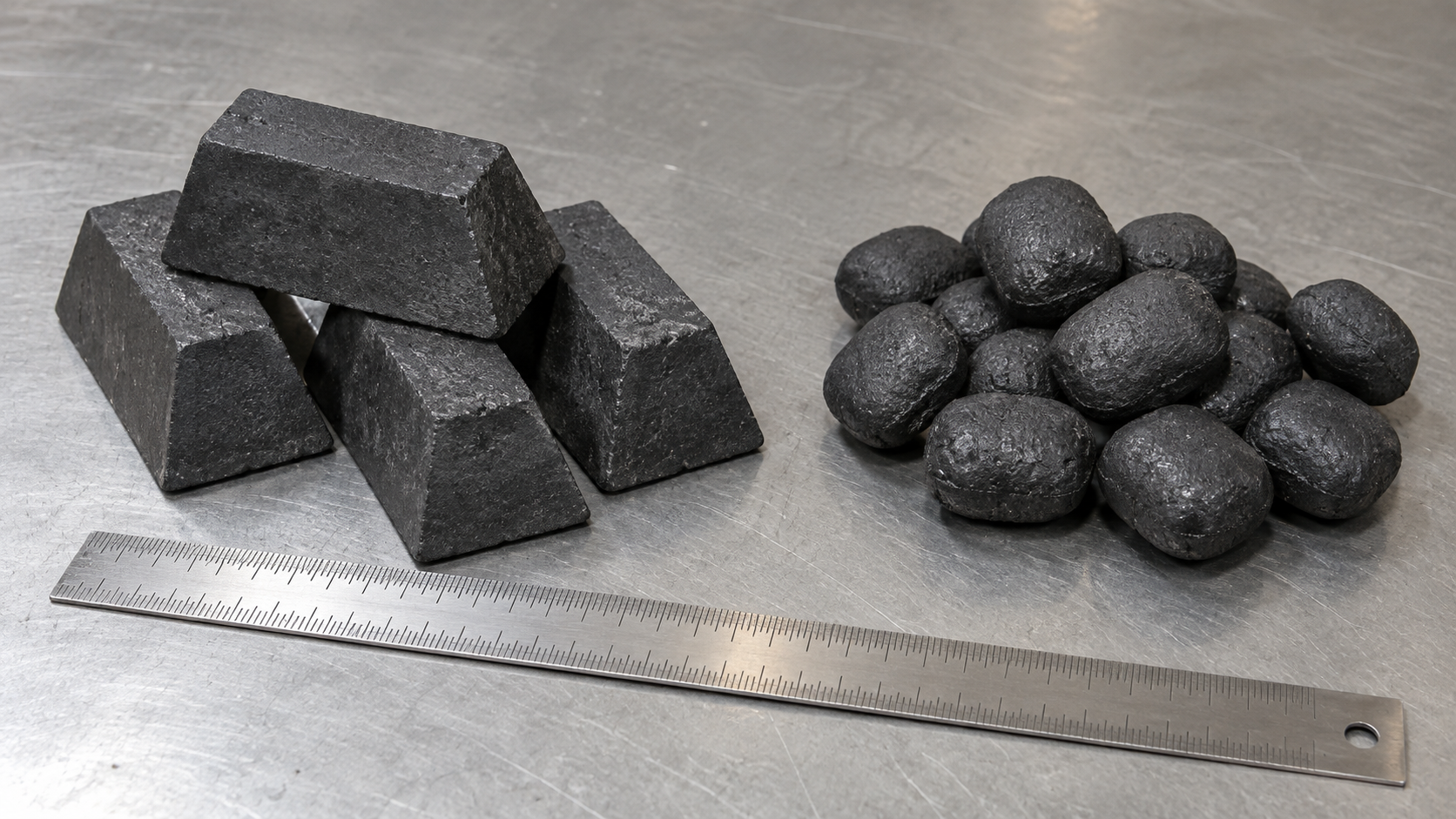

Figure. Trapezoidal blocks and pebble-form briquettes shown side by side with a scale reference. AI-generated illustrative image; not a dimensional inspection photograph.
Frequently Asked Questions
Are briquettes better than blocks? Neither is better in general. Briquettes melt down and merge sooner and give a more distributed gas path; blocks resist handling damage better and generate fewer fines per tonne handled. The right choice depends on which constraint binds at your furnace, which the determination procedure above is designed to identify.
We changed to a smaller block size and layering continued. Why? Layering originates in the thermal conditions at the paste level as much as in unit size. Where the binder softening point is too high for the operating current density, the paste melts insufficiently regardless of unit size (Wilkinson et al., Infacon IX). Review the softening point against the contract specification and the operating current density before making a further size change.
Does block form affect any parameter on the COA? No. Ash, volatile matter, softening point and the other tested parameters are properties of the formulation, and the same formulation supplied in two forms returns the same values. What differs is behaviour during charging and melt-down, which no COA parameter describes.
How much fines is acceptable on delivery? That is a contractual figure rather than a standard one; it should be set against the handling route and stated in the purchase document together with the point of assessment. Without a stated limit and a stated assessment point, a fines claim cannot be resolved on the evidence.
Can we mix forms in one furnace? It is possible but complicates diagnosis. Mixed forms pack differently from either form alone, and where a level or bridging problem arises the contribution of each cannot be separated. Where a transition between forms is planned, treat it as a controlled changeover rather than as a gradual mixing.
Related Reading
- Paste Column Bridging and Uneven Sintering (companion article) — the failure mode most directly linked to unit size and packing
- What Volatile Matter Actually Does Inside a Söderberg Electrode — the gas evolution that the escape path described above has to accommodate
- Electrode Paste Packaging and Storage for Export Orders — the handling route referenced throughout this article
- Receiving Inspection: Caking, Powdering, Binder Separation and Package Damage — fines and condition problems present on arrival rather than generated on site
- How to Plan a Controlled Electrode Paste Trial When Changing Suppliers — the procedure to use when form and formulation change together
