Why are these electrode systems not interchangeable?

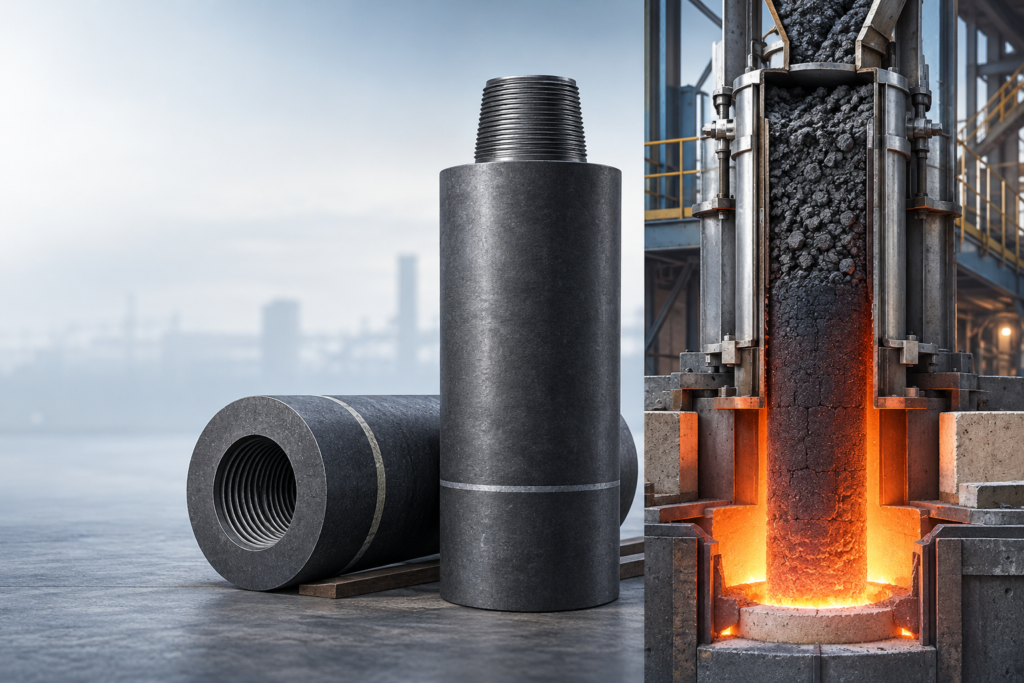

Graphite electrodes and self-baking (Söderberg) electrodes are parts of different equipment systems. A graphite electrode is manufactured, baked and graphitized before delivery and is commonly extended with machined joints. A self-baking system feeds electrode paste into a casing, where the paste softens, carbonizes and forms the working electrode during operation. Equipment design, power transmission, feeding/slipping practice and control requirements therefore prevent direct substitution.
System-level differences
| Check | Confirm | Why it matters |
|---|---|---|
| Delivered material | Graphite: finished electrode body; self-baking: electrode paste | They are not the same product form. |
| Electrode formation | Graphite: completed before delivery; self-baking: formed in the operating casing | Changes the process-control boundary. |
| Extension | Graphite: machined joint/nipple; self-baking: charging and controlled slipping | Requires different equipment and procedures. |
| Operating evidence | Graphite: joint, dimensions and consumption/breakage; self-baking: paste charging, column, slipping and baking behavior | Troubleshooting data are not interchangeable. |
| Selection basis | Whole furnace/electrode system | Product names alone cannot determine suitability. |
From system definition to a defensible selection boundary
The distinction starts before the furnace
Graphite electrodes are manufactured as solid components with defined dimensions, properties and connection geometry. Electrode paste is a feed material selected by furnace and self-baking system requirements. Calling both “carbon electrodes” may be convenient, but it hides the different supply and acceptance questions.
The working electrode is maintained differently
Graphite systems add electrode length through compatible joints and controlled installation. Self-baking systems maintain a paste column, casing and slipping/feeding cycle so that the lower section reaches the required state in operation. Advice about joint torque or nipple fit does not apply to paste charging, and paste-column guidance does not specify a graphite joint.
Choose the product after identifying the system
For a graphite-electrode inquiry, provide dimensions, joint details, furnace duty and operating demand. For electrode paste, provide SAF type, electrode/casing dimensions, alloy process, operating concern and target test values. If the equipment description is uncertain, identify the installed system before asking for a grade recommendation.
Extended field guide: turning the article into a controlled decision
A useful applications article must connect the concept to the actual equipment boundary. Definitions matter because similar carbon terms can refer to different material states, components, measurements and operating systems. The extended review below keeps those distinctions visible.
The final output should let a reader explain the mechanism, apply the correct calculation or distinction, and recognize when plant-specific technical input is still required.
Use a working file, not an email summary. Create one review file for the topic and give it an owner, date and revision. Include the requirement, the offered or observed condition, the source for each statement, the decision status and the next action. Emails, chat messages and photographs can be linked as evidence, but the controlled file should show the latest conclusion. This prevents an early assumption from surviving after later information changes the decision.
Do not mark the review complete merely because every row contains text. Completeness means that the text is traceable and adequate for its intended decision. Where confidentiality limits access to a drawing or production record, record who reviewed it and what bounded conclusion was approved without copying unsupported details into the article or order.
How to document each critical input
| Critical input | Controlled record | Review and hold-point rule |
|---|---|---|
| Delivered material | Graphite: finished electrode body; self-baking: electrode paste. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | They are not the same product form. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Electrode formation | Graphite: completed before delivery; self-baking: formed in the operating casing. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Changes the process-control boundary. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Extension | Graphite: machined joint/nipple; self-baking: charging and controlled slipping. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Requires different equipment and procedures. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Operating evidence | Graphite: joint, dimensions and consumption/breakage; self-baking: paste charging, column, slipping and baking behavior. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Troubleshooting data are not interchangeable. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
| Selection basis | Whole furnace/electrode system. Record the source, confirmer, applicable revision/date, and whether this is a requirement, supplier proposal or observed result. | Product names alone cannot determine suitability. If the information remains unknown, keep it as a visible technical hold and state which conclusions remain provisional. |
Use the input table as a live technical-control sheet rather than a one-time questionnaire. On the first pass, record only what the buyer and plant can verify. On the second pass, add the supplier’s proposed definition without overwriting the original requirement. On the third pass, record the agreed position and link it to the drawing, specification, measurement or named technical approval that closed the difference. This sequence preserves how the decision changed and prevents the latest wording from erasing an earlier conflict.
The “requirement,” “proposal” and “observed result” labels are especially important. A requirement states what the order needs; a proposal states what the supplier is offering; an observed result states what was measured or seen for an identified item or period. If the three are placed in one cell without labels, a reviewer may mistake a proposed value for an accepted limit or a single observation for a permanent specification. Keep the roles separate until the responsible technical reviewer explicitly reconciles them.
Give every row a simple status such as confirmed, proposed, pending clarification or not applicable, and require a reason whenever “not applicable” is selected. A status without supporting evidence is only a workflow marker; it is not technical proof. Record the evidence reference in the same row so that a later reviewer can move directly from the conclusion to the drawing, report, calculation, photograph or approval that supports it. Where two sources conflict, retain both references and show which source controls the current decision.
Review the table at defined handoffs rather than waiting for the end. Typical checkpoints include inquiry release, supplier clarification, technical comparison, order confirmation, pre-production approval and final acceptance. The exact checkpoints depend on the article topic and order stage, but each review should confirm that new information has been incorporated, old assumptions have been superseded visibly and open items still have an owner and closing condition.
A practical end-to-end review workflow
| Review action | How to execute it | Required output before moving on |
|---|---|---|
| Name the physical system | Identify the furnace, electrode system, material state and process boundary before discussing performance. This prevents one term from being applied to equipment that works differently. | A bounded system definition covering equipment, material state and the process included in the analysis. |
| Define the observation or calculation | State what is measured or calculated, over what period, with which units and at which physical point. A useful formula is a boundary definition as much as a mathematical expression. | A controlled calculation or observation definition with period, units, measurement point and data owner. |
| Separate mechanism from operating recommendation | Explain why a relationship exists without inventing a universal set point. Operating limits belong to the equipment, plant procedure and approved technical basis. | A clear separation between explanatory mechanism and plant-specific operating limits. |
| Keep related evidence on aligned timelines | When material movement, production and operating records are used together, align their start/end points while preserving their different meanings. | Aligned timelines that retain the distinct role of material, production and operating records. |
| Test whether comparison conditions are equivalent | Before comparing periods, products or systems, check definitions, sample states, equipment duty and data treatment. Apparent differences may come from the basis. | A comparability check confirming which periods or conditions can legitimately be compared. |
| State the boundary of use | Finish by explaining what the framework can decide and which questions still need drawings, plant records or technical review. | A use-boundary statement showing what the result supports and what still needs plant-specific technical review. |
The six steps are sequential, but they do not require every related activity to stop while a technical point is open. Preliminary comparison, information collection and commercial discussion may continue when the assumption and hold point remain explicit. What should not happen is silent progression: production release, final approval, publication or acceptance commitments must not rely on an unresolved field.
When a step sends the review backward, record why. New evidence may show that a revision, sample basis, calculation boundary or proposed definition is incomplete. Returning to an earlier step is not process failure; it is controlled correction. Update the evidence index, preserve the superseded revision and restate the downstream impact so that commercial, engineering, quality and operating teams continue to work from the same definition.
The output column is the gate between steps. Before a team marks a step complete, it should be possible for another qualified person to locate the stated output, identify its revision and understand who accepted it. If the output exists only in a call or an unindexed message, copy the bounded conclusion into the controlled file and link the original communication where appropriate. This avoids repeating the same clarification when personnel or suppliers change.
Close the workflow with a short release note that lists the subject, accepted definition or calculation basis, decisive evidence, remaining limitations and next owner. The note should not repeat the entire article; its purpose is to show exactly what was decided and what was not. If evidence remains insufficient, an honest pending or conditional result is stronger than a confident statement that cannot be traced.
Evidence quality: what deserves more weight?
Controlled order evidence. An approved drawing, agreed technical specification, purchase-order attachment or named test method is strong for the exact item and revision it controls. It should still be checked for scope: a drawing may define geometry without proving material properties, while a laboratory result may describe a specimen without proving connection fit. Strong evidence is specific, not universal.
Batch, item and event records. COAs, inspection sheets, process travellers, receiving photos, operating logs and maintenance records can support what happened to an identified batch, item or period. Their usefulness depends on identity, timing and method. A batch result should not be stretched into a permanent capability claim, and one operating event should not become an industry frequency statement.
General product and technical information. Product pages, catalogues and explanatory articles are useful for defining questions and preliminary ranges. They do not automatically become the acceptance basis for a purchase. Where a public table and an order document differ, the approved order document should control the transaction, and the difference should be resolved rather than hidden.
Photographs and recollections. Images are valuable for condition, identity and sequence when they include context. They rarely prove a tolerance, material property or root cause by themselves. Recollections can direct an investigation but should be distinguished from time-stamped records. Label estimates and later reconstructions clearly.
Roles and handoffs
The buyer or commercial team should own the inquiry scope, quantity, destination and agreed commercial boundary. Plant or application engineering should confirm equipment duty, operating context and technical constraints. Quality personnel should define the evidence, method, inspection and exception process. The supplier should state the proposed product, manufacturing or processing boundary, document availability and unresolved assumptions. Receiving or operations personnel should preserve item identity and report observed conditions without changing the technical definition.
A useful handoff contains four things: the latest controlled input, the decision made, the evidence supporting it and the open action with an owner. “Engineering has checked it” is not enough unless the checked revision and bounded conclusion are visible. Equally, a long attachment list is not a handoff if no one has reconciled conflicting identities or revisions.
Illustrative review scenario
Assume a buyer receives an offer that appears to answer the headline question in Graphite vs Self-Baking Electrodes: System Differences and Selection Boundaries, but two fields are incomplete. The team first copies the supplier’s wording without editing it, then compares Delivered material, Electrode formation, Extension, Operating evidence, Selection basis with the buyer’s requirement. Confirmed matches are recorded as such; differences are described neutrally; unknowns remain blank or marked pending.
The team does not fill missing technical values from another supplier’s catalogue. Instead, it sends a focused clarification that names the exact drawing, record, measurement or plant input required. Commercial comparison may continue using explicit assumptions, but technical approval remains on hold wherever the missing field can change fit, interpretation, acceptance or responsibility. When the reply arrives, the reviewer updates the controlled file, records the revision and explains whether the new evidence closes the question.
This scenario is intentionally generic. It demonstrates a review discipline, not a product recommendation, performance prediction or customer case. Actual values and acceptance decisions must come from the relevant furnace, order and approved technical documents.
Common failure modes and corrections
- Treating delivered material as already understood. The correction is to restate “Graphite: finished electrode body; self-baking: electrode paste” in the order or investigation record and verify why it matters: they are not the same product form.
- Treating electrode formation as already understood. The correction is to restate “Graphite: completed before delivery; self-baking: formed in the operating casing” in the order or investigation record and verify why it matters: changes the process-control boundary.
- Treating extension as already understood. The correction is to restate “Graphite: machined joint/nipple; self-baking: charging and controlled slipping” in the order or investigation record and verify why it matters: requires different equipment and procedures.
- Treating operating evidence as already understood. The correction is to restate “Graphite: joint, dimensions and consumption/breakage; self-baking: paste charging, column, slipping and baking behavior” in the order or investigation record and verify why it matters: troubleshooting data are not interchangeable.
- Treating selection basis as already understood. The correction is to restate “Whole furnace/electrode system” in the order or investigation record and verify why it matters: product names alone cannot determine suitability.
Two broader mistakes deserve attention. First, do not turn the absence of evidence into a positive statement. “No defect reported” is different from “inspection confirmed no defect.” Second, do not let a technically attractive explanation outrun the record. If several explanations remain consistent with the evidence, state that uncertainty and define the next discriminating check.
Final decision record
Before publication, quotation, purchase approval or technical disposition, write a short decision note that another qualified reviewer can follow without relying on the original conversation. It should identify the controlled item or question, list the decisive evidence, state important limits, record unresolved matters and name the next owner. The final output should let a reader explain the mechanism, apply the correct calculation or distinction, and recognize when plant-specific technical input is still required.
A robust decision note is brief compared with the evidence behind it, but it is not vague. It avoids claims such as “industry standard,” “fully compatible,” “all documents available” or “material caused the event” unless the relevant controlled evidence supports that exact scope.
Questions buyers often need to resolve
Is electrode paste a raw material for delivered graphite electrodes?
Not in the way this website uses the product categories. Electrode paste is supplied for self-baking systems; graphite electrodes are delivered as manufactured solid electrodes.
Can both systems be used in submerged arc furnace contexts?
They may appear in different SAF-related duties, but that does not make them interchangeable. Confirm the actual equipment design and task.
